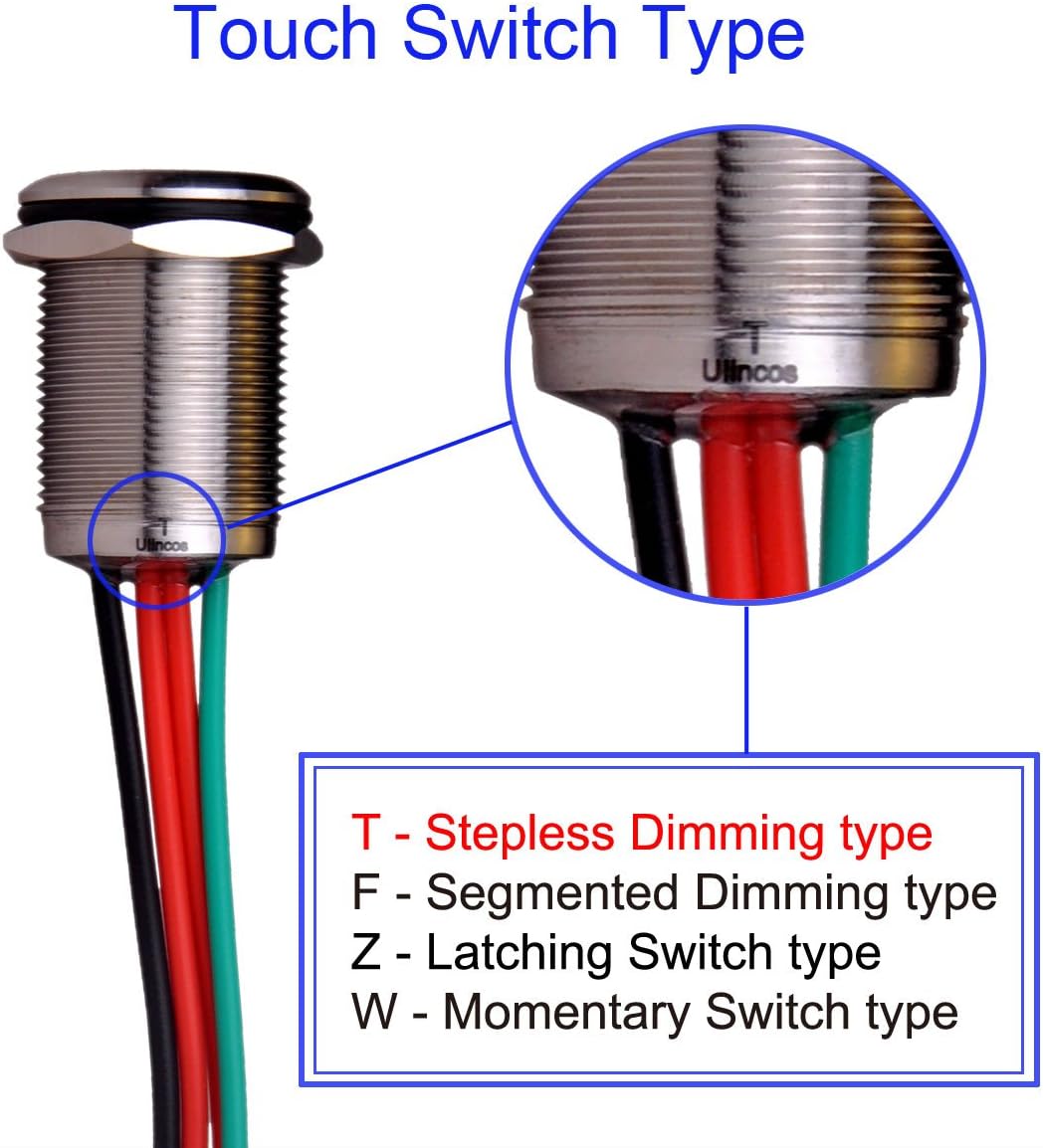

Ulincos Touch Switch UT16T1 Stepless Dimming Switch DC 6V to 24V Blue LED Suitable for 16mm 5/8" Mounting Hole

Hоttеѕt Sаlе Ulincos Touch Switch UT16T1 Stepless Dimming Switch DC 6V to 24V Blue LED Suitable for 16mm 5/8 Mounting Hole A quick review

So you can check out the other reviews at Amazon.com

only with $ 11.48

Current Rating	7 Amps
Operating Voltage	24 Volts
Brand	Ulincos
Switch Type	Touch Switch, Temperature Switch
Material	Stainless Steel
Item Dimensions LxWxH	7.09 x 0.71 x 0.71 inches
Controller Type	Ring
Control Method	Touch
Color	Stepless Dimming
Unit Count	1 Count

---

• Blue LED ring always light ON, make you quickly find the switch at night or in the dark
• The wires replace the terminal pins, make installing very easy
• Dimming Switch, normally be used to control the lights. Don't exceed the rating amps and volts, you can run it on your other projects.
• Stepless Dimming Type: You can Click or Holding Touch the switch to control your lights

› See more product details

Product Description

What You Get:
1 * Touch Switch
1 * Instruction

What's the Touch Switch:
Touch switch, just touch it!

The touch switch is rated for 7A MAX /DC 6-24V.

What's the Touch Switch Used for:
Most often the Stepless Dimming switch is used for lights (Such as critical lights, chassis lamp, dome light)

About Stepless Dimming type:
1.The light is off when connecting to electricity. Click it (time 2.The initial brightness is 100% of the maximum brightness.
3.Touch and hold it (time > 550ms) to initiate stepless dimming control. The brightness increases when touching and holding, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at maximum level. The brightness decreases when touching and holding again, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at minimum level. Continue to cycle.
4.Click and Holding Touch can be used anytime. There is no interference between these two functions.

What's Note:
*Let the switch housing connect to ground. It will protect the switch.
*The touch switch can't be used on a pump.It will be burnt out easily.
*The touch switch doesn't work with wet or damp fingers.
*The touch switch cannot be used in AC circuit. Don't exceed the rating volts!

Specifications:
Head diameter: 0.7" ( 18mm )
Mounting hole size: 5/8" ( 16mm )
Depth inc contacts: 1.1" ( 28mm )
Switch Type: Stepless Dimming
Input Voltage: DC 6V-24V
Output Current: 7A MAX
LED voltage: DC 6V-24V
LED color: Blue (always ON)
Enclosure material: Stainless Steel
Protection level: IK10
Operating Temperature: -20℃ ～ +55℃
